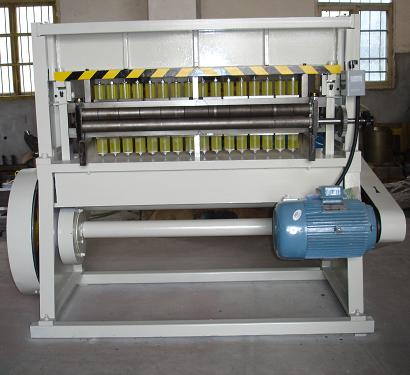

- Name：Metal foil Puncher
- Number：G-740MP
- Class：Machines for cut gasket
- Added time：2012-07-12
- Views：1677
- Sold amount：0
Details
Description:For making tanged metal sheet. It is efficient with double line needle. Change single needles easily, and low cost. Dia. Of needle: Φ1.2mm, Φ1.5, for complex sheet thick.1.2~1.6mm, and 1.5~3.0mm1. Power:380AV, 50HZ, 4KW;
2. L×W×H=1.6×1.4×1.4m;
3. N.W.: appr.2000kgs
4. Speed: 25m/hour, 68 times/min
5. Work range: 400/1000/1500mm
6. Thickness of metal: 0.1~0.25mm
