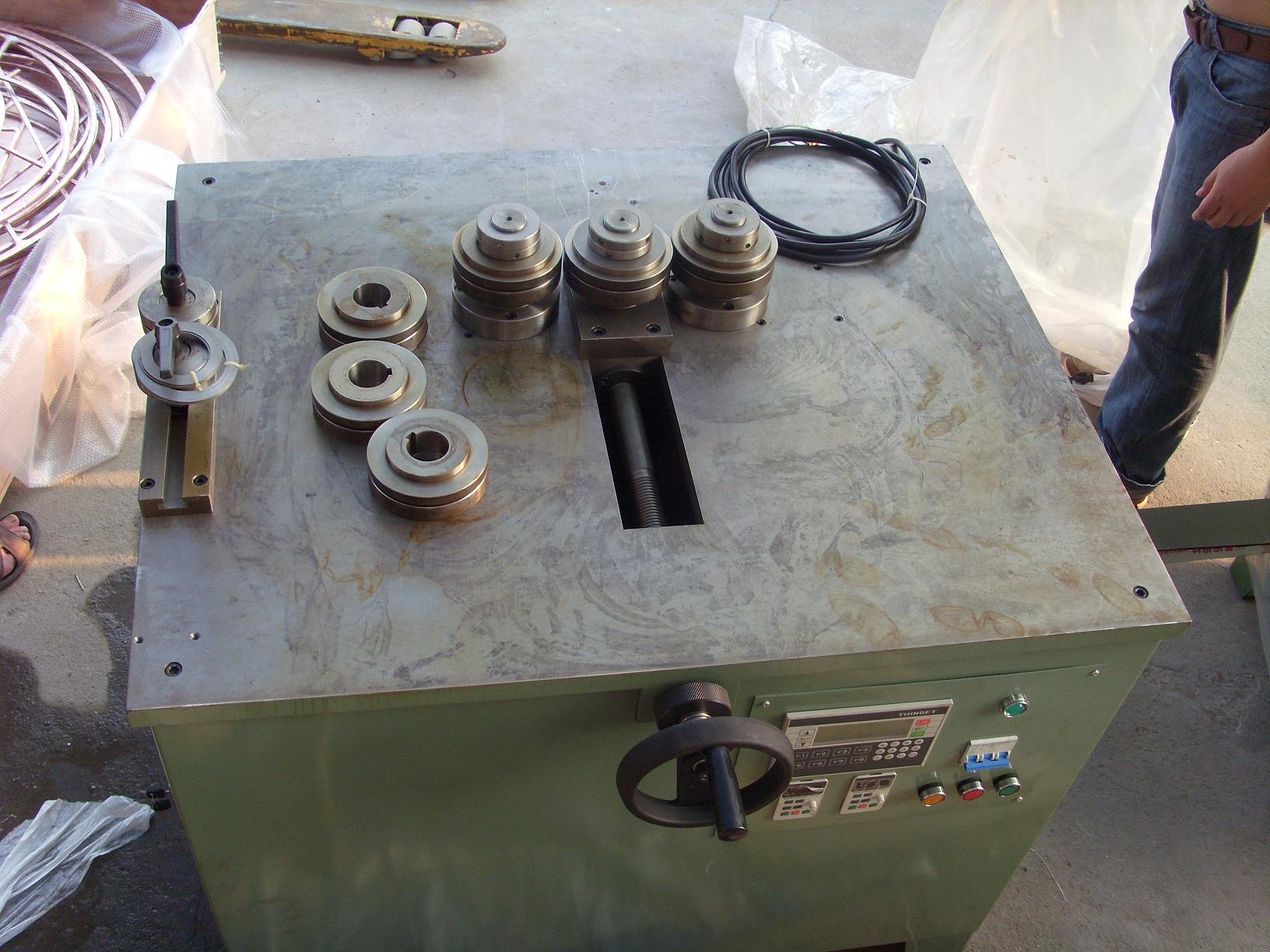

- Name：Metal Ring Bender-New style
- Number：G-720RB--New
- Class：Machines for SWG
- Added time：2012-07-11
- Views：1832
- Sold amount：0
Details
Description:Bend metal strip into inner or outer ring of SWG, No longer expensive lathes need; Utilizing adequately metal material,, no waste; No problem for large sizesNew style, with 3 pcs of motor and 2pcs of transducer, the speed can be adjusted.It is more better than old style
1. Power:380AV, 50HZ, 2.8 KW;
2. L×W×H=1×0.9×0.9m;
3. N.W.: appr.350kgs
4. Line Speed: 50mm/s
5. Work range: ID 150~4000mm
Thick. 2~5mm
Width of ring: 5~50mm
