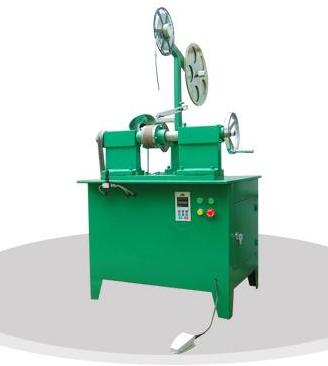

- Name：Small Winder for SWG
- Number：G-720SW
- Class：Machines for SWG
- Added time：2012-07-11
- Views：1634
- Sold amount：0
Details
Description:Can make SWG with or without inner & outer ring, needn’t complex molds. Work pressure is changed with dia. Size controlled by air pump. Need additional welder.1. Power:380AV, 50HZ, 1.1 KW;
2. L×W×H=0.8×0.8×1.6m;
3. N.W.: appr.400kgs
4. Line Speed: Transducer control
5. Work range: ID 10~350mm
Thick. 4.5mm, 3.2mm
Other thick. 2.5 & 7.5mm on request.
