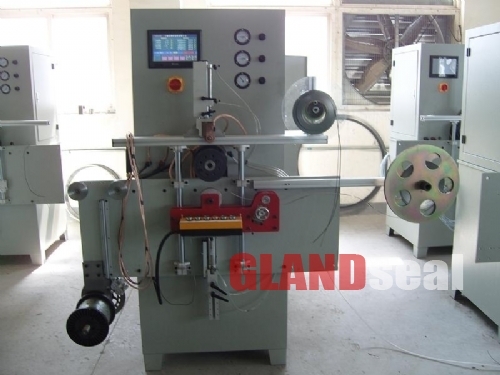

- Name：Automatic Winding Machine for Spiral Wound Gasket
- Number：G-720AW-NEW
- Class：Machines for SWG
- Added time：2012-07-17
- Views：2064
- Sold amount：0
Details
Description:Automatic Winding Machine is a new desigh in order to improve the productivity, ensure the quality of spiral wound gaksets. it has the simple repeatability operating performance. Just need to add steel strips and fillers. It can automatic producing the gasket with or without inner rings.
Production range: Diameter 15mm to 500mm;
Through the man-machine interface, setting the production specification in advance. Eg. Production quantity, number of laps, size and spot welding points, angles, and welding power. In the program under the control of the microprocessor, servo motor drive the inner loop or gaskets die cores. at the same time, winding the metal strips and fillers, automatically complete spot welding.
Two sets of steel strip outfit institution:
1. The traditional dish chip steel strip outfit institution;
2. Standard steel strip outfit institution 20~50kgs per times.
Configuration:
> Thickness of gaskets: 3.2mm, 4.5mm, 6.4mm. "V" shape or "W" shape.
> With the ANSI standard molds, from 1/2'' to 10''.
> Two patterns: with inner ring ,without inner ring
Other specially molds according to your requests.
