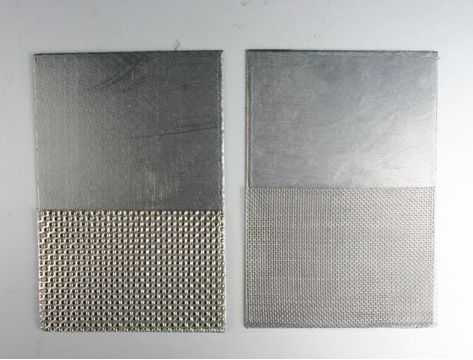

- Name：Graphite Sheet with Tanged Metal
- Number：G-Grafoil 340T
- Class：Graphite Sheet
- Added time：2012-07-11
- Views：1848
- Sold amount：0
Details
Description: Grafoil 340T is made of expanded flexible graphite 340, reinforced by a tanged stainless steel-carrier of 1.4301 (304) or 1.4401 (316), Nickel, 0.10mm~0.12mm thick, graphite content of more then 98 %, graphite bulk density 1.0 g/cm3.APPLICATION: Made for various gaskets. Suitable for Petrochemical, Mining, Vessels, Boilers, Piping and Duct, Pumps and Valves, Flanges, etc.
PARAMETER:
Temperature: -200 up to 550 centigrade degrees
Pressure: up to 500 bar
PH Range: 0 - 14
BENEFIT: Permanently elastic, even in hot-cold cycles over the entire temperature range, no aging, no brittleness, no hot or cold flow, long time uniform compressibility and resiliency independent of temperature.
MEDIA: Steam, mineral oils, heat transfer oils, hydraulic oil, fuel, water, seawater, freshwater etc.
DIMENSION:
1000 x 1000 x 1.0 ; 1.5 ; 2.0 ; 3.0mm
1000 x 2000 x 1.0 ; 1.5 ; 2.0 ; 3.0mm
1500 x 1500 x1.0 ; 1.5 ; 2.0 ; 3.0mm
1500 x 2000 x1.0 ; 1.5 ; 2.0 ; 3.0mm
