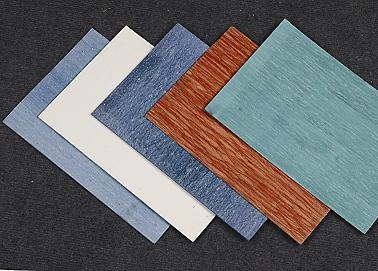

- Name：Non-asbestos Sheet
- Number：G-NCAF 532,533,534
- Class：Compressed Non-asbestos Jointing Sheet
- Added time：2013-10-11
- Views：2300
- Sold amount：0
Details
Description:GREAT NCAF Non-asbestos sheet is made from synthetic fibre, natural rubber, filling material and dye, compressed and calendered under high temperature and pressure into a sheet form. It eliminates asbestos-rubber sheet essentially and thoroughly.PARAMETER:
|
Item
|
Style
|
||
|
532
|
533
|
534
|
|
|
Density
g/cm3
|
1.8~2.0
|
1.8~2.0
|
1.8~2.0
|
|
Tensile strength ≥Mpa
|
6
|
9
|
12.5
|
|
Compressibility
≥%
|
12±5
|
12±5
|
12±5
|
|
Recovery
≥%
|
40
|
45
|
45
|
|
Aging
coefficient
|
0.9
|
0.9
|
0.9
|
|
Stress relaxation ≤%
|
45
|
45
|
45
|
|
Steam Sealing
|
Tmax: 200℃
Pmax: 2~3Mpa
30min
no shock
|
Tmax: 300℃
Pmax: 4~5Mpa
30min
no shock
|
Tmax: 400℃
Pmax: 8~9Mpa
30min
no shock
|
|
Tmax: ℃
|
200
|
300
|
400
|
|
Pmax: Mpa
|
1.5
|
3.0
|
5.0
|
|
Resistance
to media
|
Water, seawater, steam, fuel, gases, salt solutions
and many other media.
|
||
Normal colour: Black with some white, Blue or Green-white etc.
Available with tin steel, copper, SS304 etc. wire mesh insertion (53*M)
Also available with anti-stick（53*S）or graphite coating (53*G)
With your logo on request.
Sizes available:1270mm x 1270mm ,1270mm x 38100mm ,1300mm x 3810mm , 1500mm x 1500mm , 1500mm x 2000mm , 1500mm x 4100mm , 2700mm x 3810mm Thickness:0.4mm~6.0mm
