Product List
Material: modified ptfe
Excellent bolt torque retention
Chemical and High Temperature resistance
Thickness: 1~ 36mm
Width: 100 ~ 2000mm
PH Value: 0~14

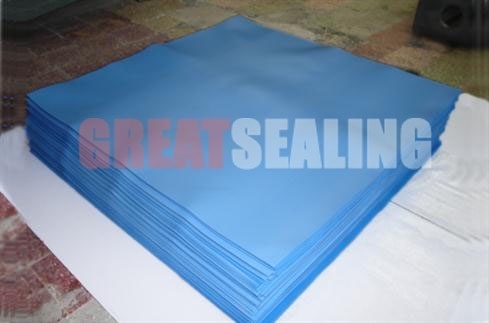

Modified PTFE sheets improved performance over
conventional PTFE, Reduced product loss and emissions. Excellent bolt torque
retention, unique manufacturing process minimizes cold flow problems typical of
skived and expanded PTFE Sheets. Withstands a wide range of chemicals for
extended service life in a wide variety of applications.
Benefits:
> Reduced creep relaxation > Chemical
resistant > Cost saving
> Tighter seal
Specification
GREATSEALING Code |
GF6650 |
GF6600 |
GF6604 |
GF6610 |
Color |
Fawn |
Blue |
Off-white |
Black |
Composition |
PTFE with silica |
PTFE with glass microspheres |
PTFE with barium sulfate |
PTFE with graphite |
Temperature |
-268 C |
-268 C |
-268 C |
-268 C |
Pressure bar |
75 |
55 |
55 |
75 |
Sealability cm3/s (GB/T9129-2003) |
< 1 x 10-3 |
< 1 x 10-3 |
< 1 x 10-3 |
< 1 x 10-3 |
Creep Relaxation % ASTM F38 |
20 |
35 |
18 |
35 |
Compressibility Range % ASTM F36-99 |
10~15 |
25~40 |
5~12 |
7~19 |
Recovery % ASTM F36-99 |
> 21 |
>25 |
>35 |
>35 |
Density g/cm3 |
1.8~1.9 |
1.8~1.9 |
1.8~1.9 |
1.8~1.9 |
Tensile Strength N/mm2 ASTMF 152-95 |
13 |
13 ~ 14 |
11 |
11 |
Flammability |
Will not support flame |
|||
Bacterial Growth |
Will not support |
|||
|
|
More information of modified PTFE sheets,please feel free
to contact GREATSEALING.
