• Name：Anti-corrosion Tape
• Number：GREAT-AT
• Class：ANTI-CORROSION TAPE
• Added time：2012-11-21
• Views：1979
• Sold amount：0

Details

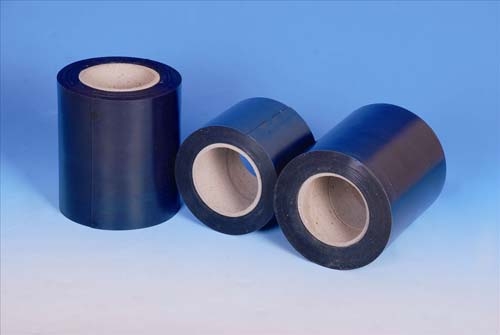

Inner Tape (Anti corrosion Tape, Anti-corrosion Tape, Anti corrosion Tapes, Anti-corrosion Tapes) System Description:

The AT-100 series is Cold Applied Anti corrosion Tape for the Anti corrosion / Anti-corrosion of underground, underwater, and overhead pipelines. Butyl Rubber Adhesive of Anti corrosion Tape is a key in ground performance characteristic coupled with the low and high density polyethylene backing. This kind of tape can be applied by hand or with a wrapping machine.



Product Advantages:

• Conformable to irregular shapes.
• No release liner.
• Established in ground history.
• Complies with AWWA (American Water Works Association) C-214 standard.
• Compatible with general coating systems.

AT-100 Inner Tape (Anti corrosion Tape, Anti-corrosion Tape, Anti corrosion Tapes, Anti-corrosion Tapes) series Coating Systems with AWWA C-214 Standard:



Type of Anti corrosion Tape:

AT-140

AT-150

AT-165

AT-180

AT-1100

AT-1130

Thickness: (ASTM D 1000)

Total

mm

mil

mm

mil

mm

mil

mm

mil

mm

mil

mm

mil

0.38

15

0.51

20

0.64

25

0.76

30

1.02

40

1.27

50

Film

0.25

10

0.30

12

0.33

13

0.38

15

0.51

20

0.64

25

Adhesive

0.13

5

0.21

8

0.31

12

0.38

15

0.51

20

0.63

25

Tensile:

27 lbs/in

31 lbs/in

34 lbs/in

39 lbs/in

53 lbs/in

66 lbs/in

Length:

60 Meter

50 Meter

40 Meter

30 Meter

25 Meter

20 Meter

Width:

2, 3, 4, 6, 9,12 Inch

Colour:

Black

Elongation:

300%

Peel Adhesion to Prime Pipe: (ASTM D 1000)

165 oz/in, 18N/10mm

Cathodic Disbandment: (ASTM G8)

0.25 in radius 6.4 mm

Water Vapor Transmission Rate: (ASTM F1249)

0.2g/100in2 /24h, 0.3mg/cm2/24h

Water Absorption: (ASTM D570)

≤ 0.1

Volume Resistively: (ASTM E257)

2.5 X 1012 ohm·cm

Dielectric Strength: (ASTM D 149)

40 KV

Temperature Range: (Normal in Ground Service)

-30 to 160 oF, -34 to 71oC



Inner Tape (Anti corrosion Tape, Anti-corrosion Tape, Anticorrosion Tape, Corrosion Protection Tape, Anticorrosive Tape, Anti corrosive Tape) for the anti corrosion / anti-corrosion of underground,underwater, overhead pipeline.
