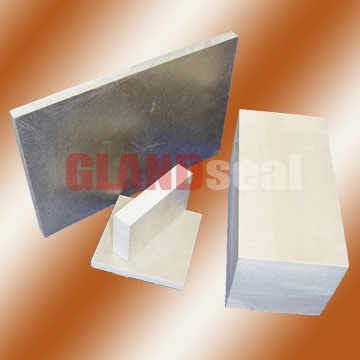

- Name：Hard Mica Sheet
- Number：G -382H
- Class：Mica Sheet
- Added time：2012-07-20
- Views：1940
- Sold amount：0
Details
Description:High-performance thermal and electrical insulation is designed for electromechanical and thermomechanical applications requirement, It is used as a replacement for asbestos and other insulating boards for a variety of applications.Insulation Materials:
|
Item
|
Test by
|
4322
|
|
|
Binder content %
|
|
10-15
|
|
|
Density g/cm3
|
IEC371-2
|
2.45
|
|
|
Heat Resistance
|
Continuous ℃
|
|
500/700
|
|
Peak ℃
|
|
700/1000
|
|
|
Weight loss continuous temperature
|
500℃ %
|
|
<1
|
|
700℃ %
|
|
<2
|
|
|
Water absorption 24h/23°C %
|
|
<1
|
|
|
Fire resistance classification
|
UL94
|
94V-0
|
|
|
Dielectric strength
|
20°C kV/mm
|
IEC243
|
25
|
|
400°C/ 1 hour, tested at 20°C kV/mm
|
IEC243
|
13
|
|
|
600°C/ 1 hour, tested at 20°C kV/mm
|
IEC243
|
10
|
|
|
Volume resistivity
|
20°C ohm.cm
|
IEC93
|
10-16
|
|
400°C ohm.cm
|
|
10-12
|
|
|
500°C ohm.cm
|
|
10-9
|
|
|
Normal dimension: 1200×1000mm, 600×1000mm, Thickness: 0.2~80mm
|
|||
Note: UL Recognized Component 94V-0 Flame Class Rating, File card E216697
