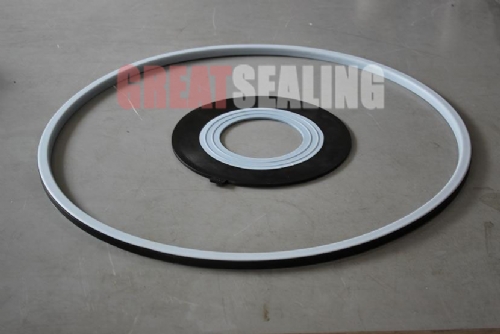

Super Tanktyt Manlid Seal

Description

This manlid seal combines the resilience and compression set resistance of EPDM rubber with the outstanding chemical resistance of PTFE. The seal's rectangular elastomeric core is enveloped on three sides:  top and bottom sealing faces and the inside diameter) with 100% virgin PTFE.

Prime features

Excellent chemical resistance. Withstands repeated opening/closing cycles without loss of sealing integrity.

Chemical properties

The PTFE envelope makes the sealing faces and inside diameter chemically inert to media in the range pH 0-14 including all bulk liquid cargoes in all IMO classes. The virgin PTFE is non-absorbent, non-tainting, and hygienic for use with foodstuffs and edible oils.

Service capabilities

Tank maximum pressure: 4bar Maximum temperature: +110°C Minimum temperature: -25°C

GREAT Standard Size:
