- Name：Cotton Packing with Graphite & oil
- Number：G -124G
- Class：Vegetable Fiber Packing
- Added time：2012-07-18
- Views：1952
- Sold amount：0
Details
DESCRIPTION:

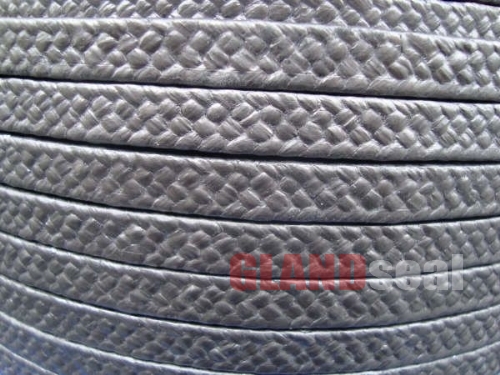

Cotton Packing with Graphite & oil: Pre-impregnated cotton yarns treated with graphite, then thoroughly re-impregnated during braiding. The packing is resilient and flexible.
APPLICATION:
Universal packing, for Rotary, reciprocating pumps, in ship building and domestic fresh water pumps. Cotton Packing with PTFE impregnation is designed for hydraulic applications in low and medium pressure pumps and valves, and where contamination is not permitted.
PARAMETER:
|
Style
|
124G
|
||
|
Pressure
|
Rotating
|
10 bar
|
|
|
Reciprocating
|
50 bar
|
||
|
Static
|
80 bar
|
||
|
Shaft speed
|
10 m/s
|
||
|
Density
|
1.3 g/cm3
|
||
|
Temperature
|
-50~+130°C
|
||
|
PH range
|
6~8
|
||
DIMENSIONS:in coils of 5 to 10 kg, other weight on request.
