- Name：Ceramic Fiber Paper
- Number：G-CF440
- Class：Ceramic Fiber Paper
- Added time：2012-07-14
- Views：1769
- Sold amount：0
Details
| Specification: |
Description:Ceramic fiber paper uses ceramic fiber spraying cotton and is made through washing and adding bonding agent under vacuum condition. They have high intensity, good flexility and strong scissoring performance and the ideal material for producing high temperature washer, airproofing, heat insulation and insulation. Temperature level is 1050-1260℃.

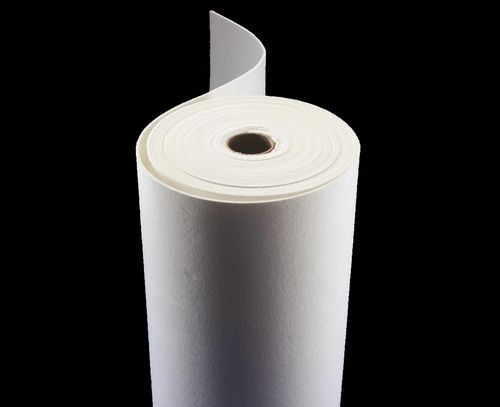

Ceramic fiber paper
Characteristics:
Low coefficient of heat-conduction ratio, low thermal capacity, Thermal shock resistance,
High quality of flexility and tear resistance. Not include asbestos, erosion resistance.
High quality of flexility and tear resistance. Not include asbestos, erosion resistance.
High quality of insulation and sound insulation.
Easiness of mechanical processing.
Tough texture and high quality of compression resistance.
Application rage:
Application rage:
Insulation, seal and safety materials for industrial need.
Insulation and heat insulation materials for electrica thermal equipments.
Insulation and heat insulation for equipments and electro thermal components.
Heat insulation materials for automobile.
|
Categorised temperature℃
|
1260
|
|
|
Density of volume(kg/m3)
|
170±15
|
|
|
Content of organic matter
|
6－8
|
|
|
Coefficient that
heat conduct under average temperature |
200℃
|
0.075-0.085
|
|
400℃
|
0.115-0.121
|
|
|
600℃
|
0.165-0.175
|
|
|
Main chemical
compositions (%) |
AL2O3
|
47-49
|
|
AL2O3+SI2O3
|
98-99
|
|
|
Standard specification of the
prcducts |
Thickness:0.5～6mm
Width:610/1220mm
Length:20m～80m
The special specification can be made to order according to user's enquiry |
|
