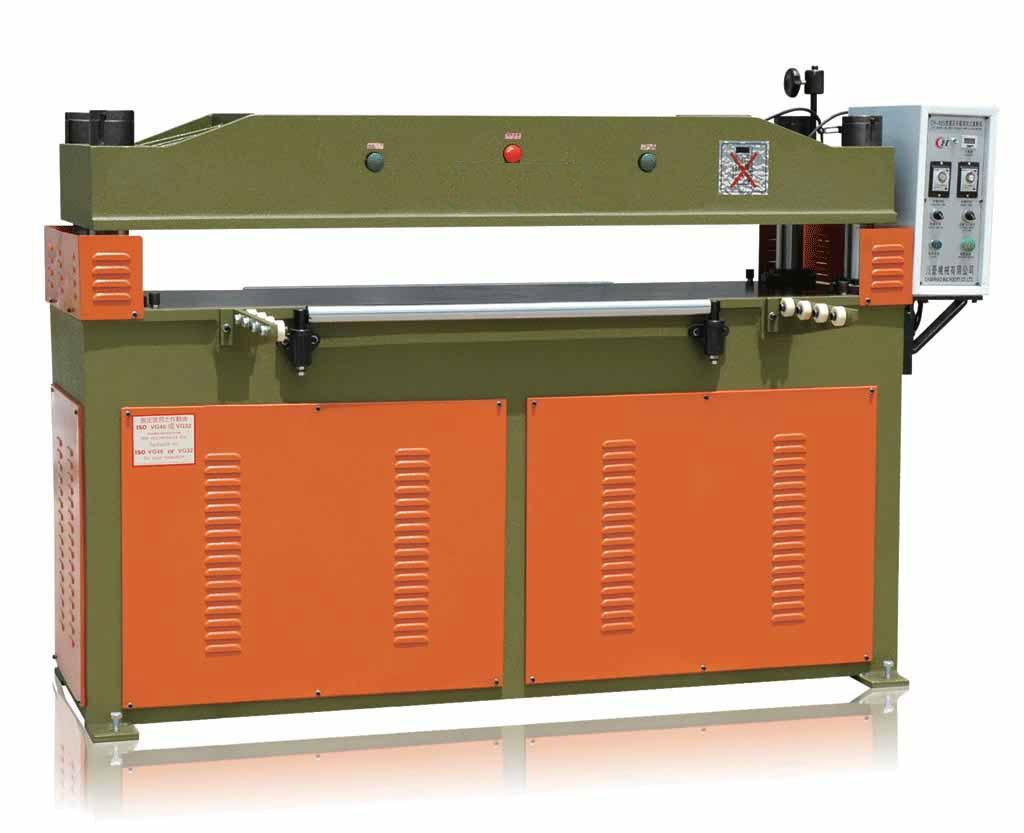

- Name：Plane and four-columns gasket cutting press
- Number：GM760
- Class：Machines for cut gasket
- Added time：2012-07-12
- Views：1859
- Sold amount：0
Details
| Product Details: | ||||||
| Model | GM-760 | |||||
| Brand Name | GM | |||||
| Place of Origin | China (Mainland) | |||||
| Color | green and orange | |||||
| Cutting table | 1750*900mm | |||||
| M.C.F. | 60tons | |||||
| Stroke | 50-170mm | |||||
| Power | 5HP | |||||
| Dimensions | 2280*1465*1460mm | |||||
| Packing size | 2480*1665*1760mm | |||||
| N.W. | 4000kg | |||||
| Port | China Port | |||||
| Payment Terms | T/T | |||||
| Price | ||||||
| Detailed Product Description | ||||||
| 1. This machine is for cutting big size gasket | ||||||
| 2.This machine used to leather, plastic,rubber,cotton, leather vacuum and shaping, gathers the forming, the cardboard, the non-metallic material indentation. | ||||||
| 3.This machine adopts the mechanism of double-cylinder and four columns balanceable connected staffs, that ensure the be-cutted places identical. It is fit to all the big- surface-area material just like non-metal and semimetal gasket sheet,and so on. | ||||||
| 4.Machinery lubrication system to extend life,finetuning device reliability. | ||||||
