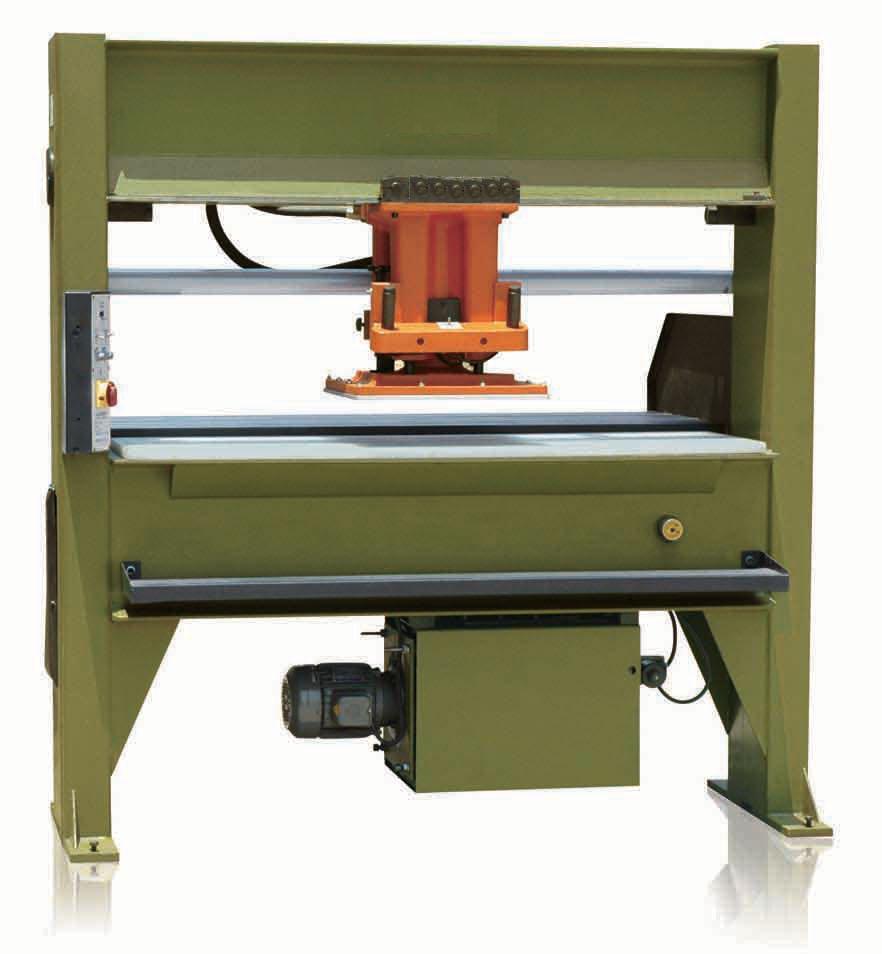

- Name：HYDROLIC POWER PRESS FOR CUT GASKET
- Number：GM-835
- Class：Machines for cut gasket
- Added time：2012-07-12
- Views：1963
- Sold amount：0
Details
| Product Details: | |||||
| Model | GM-835 | ||||
| Brand Name | GM | ||||
| Place of Origin | China (Mainland) | ||||
| Color | green and orange | ||||
| Cutting table | 1600*500mm | ||||
| M.C.F. | 35tons | ||||
| Stroke | 3-150mm | ||||
| Arm width | 500*500mm | ||||
| Power | 2HP | ||||
| Trolley Power | 1HP | ||||
| Dimensions | 1952*700*2020mm | ||||
| Packing size | 2130*860*2200mm | ||||
| G.W. | 1580kg | ||||
| Voltage | Three phase 380V,50HZ | ||||
| Payment Terms | T/T | ||||
| Price | |||||
| Detailed Product Description | |||||
| 1.With traveling head frame,very reliable and easy to operate. | |||||
| 2.Simple and efficient cutting point setting. | |||||
| 3.With hands operation function to ensure safety. | |||||
| 4.Press plate uses cross switch and limit switch to control and ensures safety. | |||||
| 5.The moving of press plate is automatically to raise working efficiency. | |||||
| 6.Material feeder available for saving labour force. | |||||
| 7.The pressure can adjustment to lesser than 35 T. | |||||
| 8.For non-metallic and semi-metallic cutting gaskets | |||||
