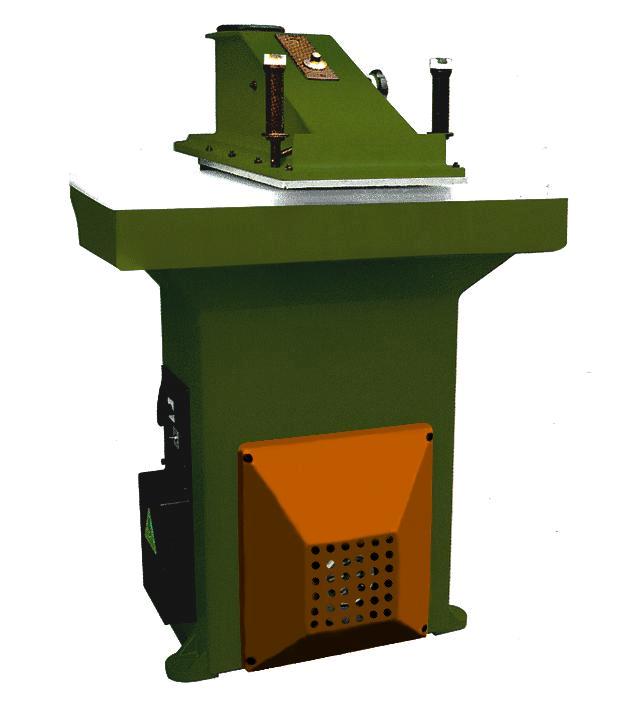

• Name：Soft Gasket Cut Machine
• Number：G-740CF
• Class：Machines for cut gasket
• Added time：2012-07-12
• Views：1738
• Sold amount：0

Details

Description:to cut soft non-metal gasket in any shape and sizes

 Swing arm cutting press
FEATURES:
1.The machine have the hands operation function that is more safe.
2.Double oil ways hudraulic pressure that is stable and reliable.
3.The cutting point setting is simple,accurate,light and handy.
4.The automatic lubricant lessen the machine wearing.

Model	G45	G50	G60
Pressure	20T	27T	27T
Stroke	80mm	100mm	100mm
Working area	900×430mm	900×450mm	1000×500mm
Cutting width	370mm	380mm	500mm
Power	1.0HP	1.5HP	1.5HP
N.W.	660kg	780kg	840kg
Dimension（L×W×H）	900×935×1300mm	1050×1150×1570mm	1150×1150×1570mm
